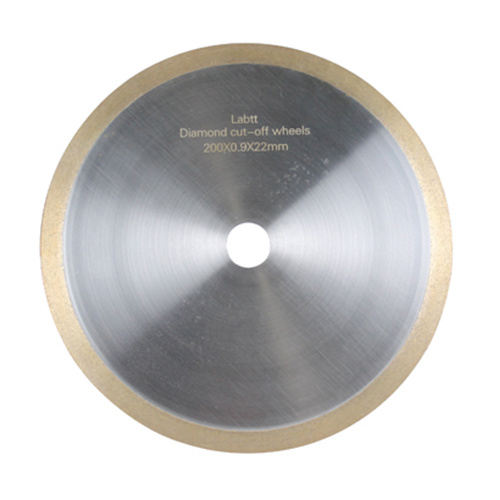

Diamond Precision Cutting Wheel
DCWA
PRODUCT ADVANTAGES
Diamond has extremely high hardness, giving the cutting disc a powerful cutting ability to easily cut through hard materials.
The cutting accuracy is extremely high, with fine cut edges, meeting the needs of high - precision processing.
Its wear resistance is much higher than that of ordinary cutting discs. It can be used many times, reducing the replacement cost.
It has stable performance during cutting, is not easily affected by the cutting material and environment, and ensures the cutting quality.
It is suitable for cutting various brittle materials such as stone, ceramics, glass, and some metal materials.
The self - loss during cutting is small, which can make more efficient use of materials and reduce production costs.
Classification：
CUTTING
Keyword：
Cutting
Diamond Precision Cutting Wheel
DCWA
Diamond has extremely high hardness, giving the cutting disc a powerful cutting ability to easily cut through hard materials.
The cutting accuracy is extremely high, with fine cut edges, meeting the needs of high - precision processing.
Its wear resistance is much higher than that of ordinary cutting discs. It can be used many times, reducing the replacement cost.
It has stable performance during cutting, is not easily affected by the cutting material and environment, and ensures the cutting quality.
It is suitable for cutting various brittle materials such as stone, ceramics, glass, and some metal materials.
The self - loss during cutting is small, which can make more efficient use of materials and reduce production costs.
Classification：
CUTTING
Keyword：
Cutting
Product Description
| Product Image | Specification | Size （Outer diameter * Thickness * Aperture） | Samples suitable for cutting |
 | DCWA100 | 100×0.3× 12.7mm | It is used for cutting specimens of extremely hard metals and cemented carbide, non-metallic minerals, glass, ceramics, brittle hard brittle materials, etc. |
| DCWA125 | 125× 0.4 12.7mm | ||
| DCWA150 | 150× 0.5 ×12.7mm | ||
| DCWA175 | 175× 0.7 ×12.7mm | ||
| DCWA200 | 200（8 inch）× 0.9 × 22/32mm |
Tip: It is recommended to use with LABTT metallographic cutting cooling Lubricating Fluid.
| Domestic diamond cutting blades | |
DCWA100 | Ф100× 0.3 × 12.7mm |
DCWA125 | Ф125× 0.4 × 12.7mm |
DCWA150 | Ф150× 0.5 × 12.7mm |
DCWA175 | Ф175× 0.7 × 12.7mm |
DCWA200 | Ф200（8 inch.）× 0.9 × 22/32mm |
DCWA250 | Ф254（10 inch.）× 0.9 × 32mm |
DCWA300 | Ф300X1.5X32mm |
DCWA350 | Ф350X2.0X32mm |
| Imported diamond cutting blades | Suitable for non-ferrous materials, UKAM manufactured in the United States |
DCW100 | Ф100（4inch.）× 0.3× 22/32mm |
DCW125 | Ф125（5 inch.）× 0.38 × 12.7(1/2 inch) |
DCW150 | Ф152（6 inch.）× 0.43 × 12.7(1/2 inch) |
DCW175 | Ф178（7 inch.）× 0.63 × 12.7(1/2 inch) |
DCW200 | Ф203（8 inch.）× 0.80 × 22mm |
