Automatic Precision Cut-off Machine
LC-200XP
PRODUCT ADVANTAGES
Spindle adopts frequency conversion control, high speed, stepless speed regulation, overload protection.
Y-axis manual, automatic, impact and other cutting methods.
Automatic/manual X-axis parallel movement of the sample to achieve parallel cutting of the sample (optional).
Automatic X axis parallel movement function, one start, automatically complete parallel sample cutting
Automatic rotary cutting sample, effectively reduce the sample fever (option)
Double cutting at the same time, the time for a quick two parallel samples (option).
Classification：
Benchtop Cut-off Machines
Keyword：
Automatic Precision Cutting Machine
Automatic Precision Cut-off Machine
LC-200XP
Spindle adopts frequency conversion control, high speed, stepless speed regulation, overload protection.
Y-axis manual, automatic, impact and other cutting methods.
Automatic/manual X-axis parallel movement of the sample to achieve parallel cutting of the sample (optional).
Automatic X axis parallel movement function, one start, automatically complete parallel sample cutting
Automatic rotary cutting sample, effectively reduce the sample fever (option)
Double cutting at the same time, the time for a quick two parallel samples (option).
Classification：
Benchtop Cut-off Machines
Keyword：
Automatic Precision Cutting Machine
Product Description

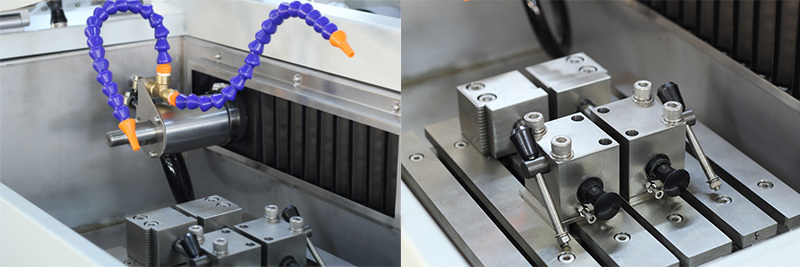

LC-200XP automatic high-speed precision cutting machine is a Y axis automatic feed cutting machine, X axis translation, R axis automatic rotation, double knife cutting, can be optional customized implementation, a wider range of suitable for cutting a variety of materials.
| Model | LC-200XP |
| Cutting blade | Standard configuration of Φ 200x Φ 32x0.9 |
| Spindle speed | 500-3000r/min (optional 500-5000r/min) |
| Feed rate | 0.01-3mm/s |
| Backward speed | 0-5mm/s |
| Impact cutting distance | 0-5mm/s |
| Impact cutting distance | 0.1-2mm |
| Cutting stroke (X-axis) | 50mm |
| Cutting stroke (R-axis) | 0-30 (revolutions per minute), stepless speed regulation |
| Cutting stroke (Y-axis) | 200mm |
| Maximum cutting diameter | Φ 60mm |
| Maximum clamping length | 150mm |
| Maximum clamping width | 215mm |
| Three phase AC asynchronous motor: power | Power: 1.5kw |
| Usage data | Can store 12 types |
| Power supply | AC220V 50HZ |
| Dimensions (Width X Depth X Height) | 790 × 870 × 455mm |
| Weight | 126KG |
